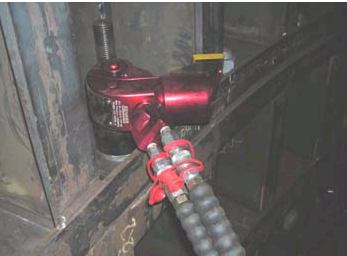

驅動軸式液壓扭矩扳手
|
項目 |
小扭矩
(Nm) |
大扭矩
(Nm) |
螺母對
邊尺寸
(mm) |
驅動軸 |
L1
(mm) |
L2
(mm) |
H1
(mm) |
H2
(mm) |
H3
(mm) |
H4
(mm) |
R1
(mm) |
R2
(mm) |
重量
(Kg) |
|
KTHM02 |
188 |
1882 |
16-36 |
3/4” |
130 |
182 |
52 |
77 |
96 |
133 |
25.8 |
102 |
1.7 |
|
KTHM05 |
447 |
4466 |
22-48 |
1” |
170 |
249 |
70 |
98 |
127 |
165 |
34.8 |
140 |
3.8 |
|
KTHM08 |
745 |
7451 |
27-55 |
1-1/2” |
202 |
286 |
81 |
125 |
149 |
184 |
39.8 |
160 |
6.6 |
|
KTHM10 |
1073 |
10732 |
30-64 |
1-1/2” |
228 |
326 |
90 |
134 |
172 |
207 |
46.8 |
184 |
9 |
|
KTHM16 |
1536 |
15359 |
36-72 |
1-1/2” |
237 |
336 |
100 |
144 |
181 |
216 |
50.8 |
192 |
12.9 |
|
KTHM20 |
2011 |
20108 |
42-90 |
2-1/2” |
273 |
391 |
110 |
164 |
206 |
241 |
56.8 |
223 |
24.5 |
|
KTHM28 |
2639 |
26392 |
42-90 |
2-1/2” |
287 |
433 |
120 |
187 |
221 |
256 |
59.8 |
248 |
24.5 |
|
KTHM36 |
3540 |
35397 |
48-100 |
2-1/2” |
323 |
464 |
138 |
206 |
258 |
293 |
70.8 |
256 |
30.7 |
|
KTHM50 |
4874 |
48740 |
64-120 |
2-1/2” |
351 |
494 |
153 |
217 |
279 |
315 |
76.8 |
271 |
44.8 |
|
KTHM70 |
7066 |
70660 |
90-175 |
2-1/2” |
376 |
528 |
162 |
226 |
291 |
326 |
78.9 |
295 |
63.2 |
|
| |
|
|
